Pneumatic mixing type / top discharge

Product Name : Pneumatic mixing type / top discharge
Model : PT-MSS

Q'ty :
    Enlargement



    Products

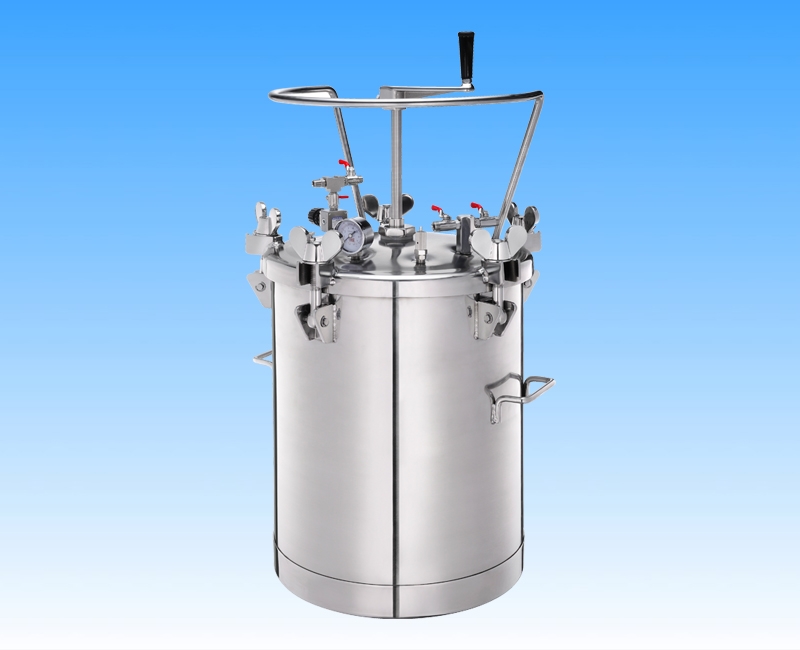

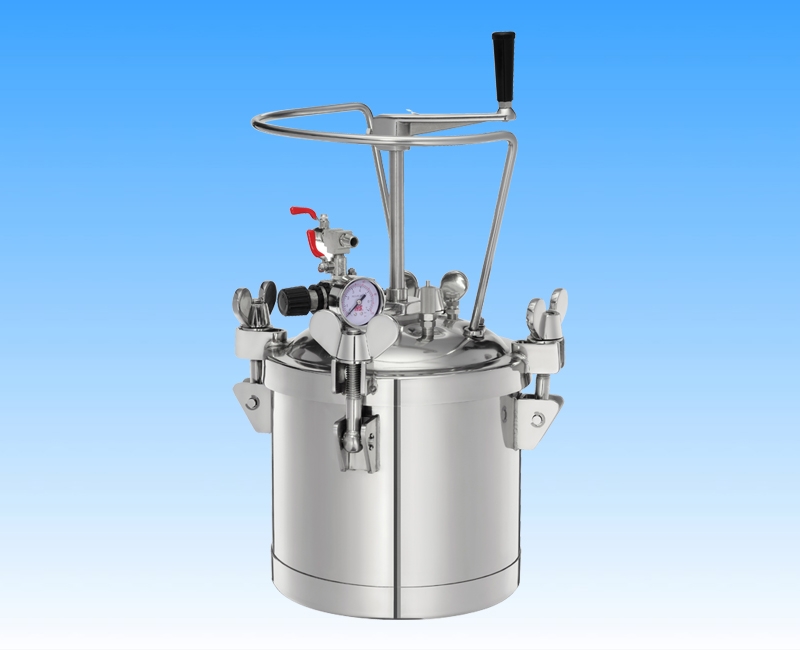

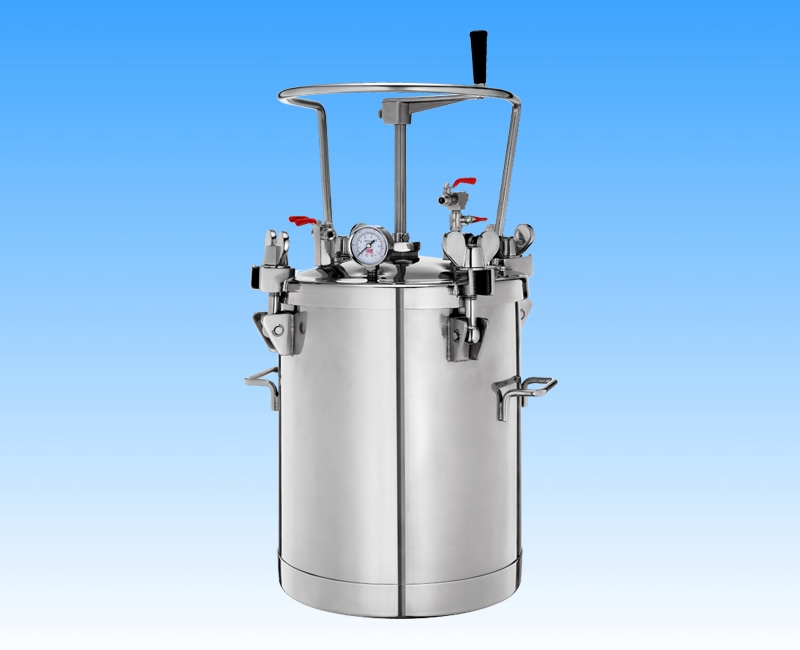

    Product Image proimages/products/PT-10MH-SS/PT-10MH-SS-800x800-藍色底圖.jpg  proimages/products/PT-20MH-SS/PT-20MH-SS-800x800-藍色底圖.jpg  proimages/products/PT-50MH-SS/PT-50MH-SS-800x800-藍色底圖.jpg
    Model PT-10MH-SS PT-20MH-SS PT-50MH-SS
    Volume 10L 20L 50L
    Fluid Outlet 1/4"psf×1 1/4"psf×2 1/4"psf×2
    Max. Air Pressure 4.1 bar / 60 psi 4.1 bar / 60 psi 4.1 bar / 60 psi
    Material SUS304 SUS304 SUS304
    Inner Tank - - -

    Tank Lid

    (T×I.D.×O.D.)

    		 3.5×280×290mm 5×333×345mm 5×389×400mm

    Tank body

    (T×H×I.D.×O.D.)

    		 2×239×264×268mm 2×413×318×322mm 2×497×369×373mm

    Specification

    (L×W×H)

    		 290×310×510mm 350×405×765mm 425×452×865mm
    Net/Gross/CUFT 14.1kg×15.3kg×1.8' 21.1kg×22.9kg×3.7' 26.4kg×29.2kg×6.8'
