Pencil Hardness Tester

Product Name : Pencil Hardness Tester
Model : PPH-1000

Q'ty :
    Enlargement



    Products

    Pencil Hardness Tester
    PPH-1000

    The PPH-1000 Pencil Hardness Tester is precisely designed for rapid testing of surface treatments and coating scratch resistance. It offers flexible adjustment of load weights to 500g, 750g, or 1000g and is equipped with aluminum alloy rollers and rubber rings to increase movement stability, eliminating the need for a bubble level. Users can choose from Mitsubishi JIS test pencils or DIN standard test pencils, and it can also be paired with a dedicated flat-head pencil sharpener and grinder.

    This fully stainless steel tester fully complies with ISO 15184, JIS K 5600-5-4, ASTM D3363, and BS 3900-E19 standards, making it ideal for precise evaluation of scratch resistance for various surface treatments, meeting a wide range of testing needs.

    proimages/products/PPH-1000/PPH-1000(2).png
    Technical Data
    Dimensions
    L90×W50×H90 mm
    Weight
    Approx. 2.1 kg
    Pencil Tip Load

    The pencil and testing surface form a 45° angle. The pencil tip load can be freely set to 500g, 750g, or 1000g
    Complies with Standards
    ASTM D3363
    ECCA T4
    MIL C 27 228
    NEN 5350
    SIS 184187 SNV 37113
    Main Body Material
    Stainless Steel

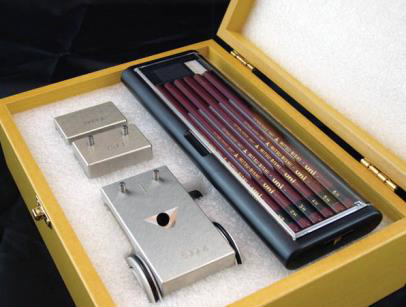

    Accessories
    Main Unit (500g) × 1
    Load Weight (labeled 750g) × 1
    Load Weight (labeled 1000g) × 1
    Mitsubishi Hardness Pencils (6B, 5B, 4B, 3B, 2B, B, HB, F, H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H) × Select 12
    Wooden Carrying Case × 1
    Sandpaper (400 grit) × 1
