Round cover

Product Name : Round cover
Model : LA-Series

Q'ty :
Enlargement



Products

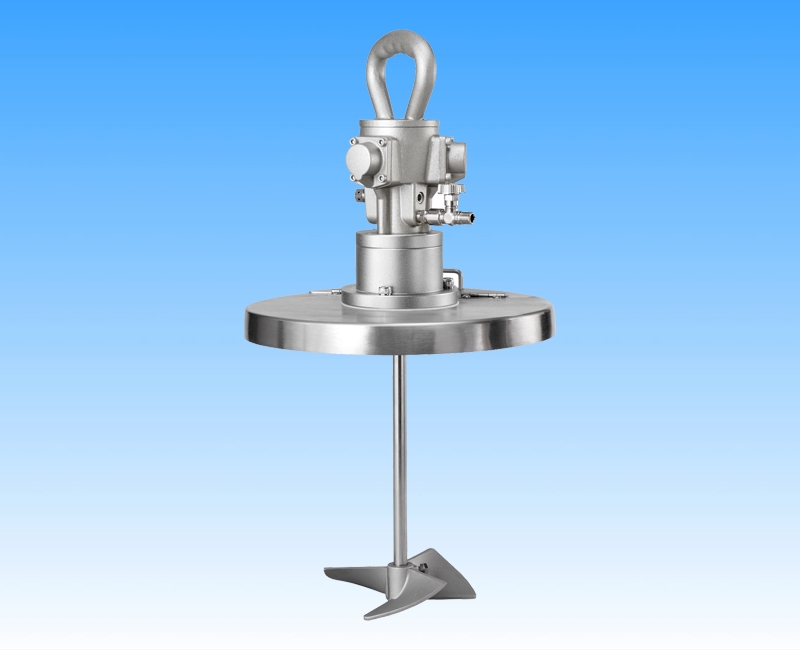

Product Image  proimages/products/LA-1/LA-1-800x800.jpg proimages/products/LA-5/LA-5-800x800.jpg proimages/products/LA-2/LA-2-800x800.jpg
Model LA-1 LA-5 LA-2
characteristic   Reducer
Air motor 1/3 HP (AM-02) 1/3 HP (AM-02R) 1/3 HP (AM-02)
Agitation Shaft Ø15×360 mm Ø15×300 mm Ø15×840 mm
Air consumption 19 L/min 16 L/min 19 L/min
Vibration value 11 m/s2 7 m/s2 11 m/s2
Free speed 2780 rpm 5:1→556 rpm
10:1→278 rpm		 2780 rpm
Product(L×W×H) 322×322×600 322×322×600 740×626×1070
Carton(L×W×H) 380×170×570 380×170×570 1015×191×476
N.W/G.W/CUFT 5.1 kg / 5.9 kg / 1.2' 5.8 kg / 6.6 kg / 1.2' 15.1 kg / 16.8 kg / 3.3'
Product Image  proimages/products/LA-55/LA-55-800x800.jpg
Model LA-55
characteristic Reducer
Air motor 1/3 HP (AM-02R)
Agitation Shaft Ø15×790 mm
Air consumption 16 L/min
Vibration value 7 m/s2
Free speed 5:1→556 rpm
10:1→278 rpm
Product(L×W×H) 740×626×1070
Carton(L×W×H) 682×191×476
N.W/G.W/CUFT 15.7 kg / 17.4 kg / 2.2'
