High-Performance Automatic Spray Gun
GFA-200

High-Density Flat Pattern ‧ Precision Resin Coating ‧ Engineered for Robotic Applications

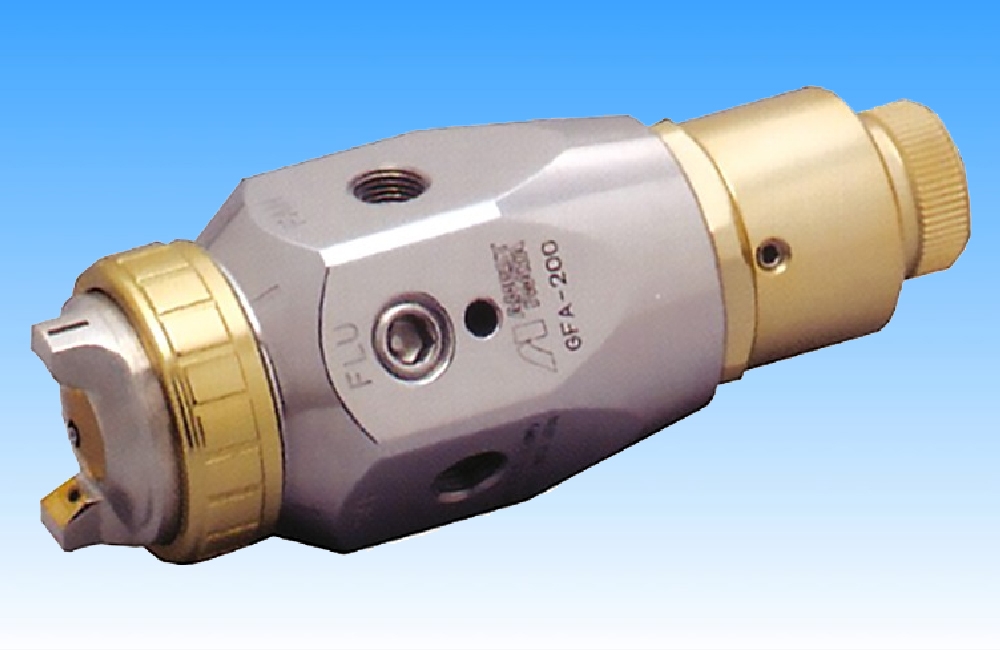

The GFA-200 Series is a high-performance automatic spray gun developed specifically for precision resin coating. It delivers excellent atomization uniformity and minimal coating defects, making it ideal for low flow rate applications (30–100 mL/min). This series is widely used in industries requiring high-quality finishes on automotive parts, home appliance components, and laptop housing structures.

Dual Independent Air Control for High Flexibility
The GFA-200 Series features independent control of atomizing air and pattern air, allowing remote adjustment according to the coating path. (Note: Air valves are not built-in.) This function is particularly useful for robotic tracking spray operations, enabling dynamic pattern adjustments that reduce overspray and improve material efficiency.

Recommended Applications：

• High-quality plastic exterior parts (automotive, electronics, home appliances)
• Fine metal components, meshwork, masking jig spraying
• High-speed multi-gun synchronized production lines

Key Features：

• High-Density Flat Pattern design significantly reduces color variation and paint build-up
• Shortened internal paint passages minimize residual coating and simplify cleaning
• Available in all-stainless steel (compatible with waterborne paints) or anodized aluminum body, selectable based on application needs
• Suitable for both single-gun and multi-gun systems, including dual-spindle and masking-jig applications

Model Highlights：

• GFA-200-084P: Stainless steel body; ideal for robotic or rotary spindle coating of digital camera and smartphone housings

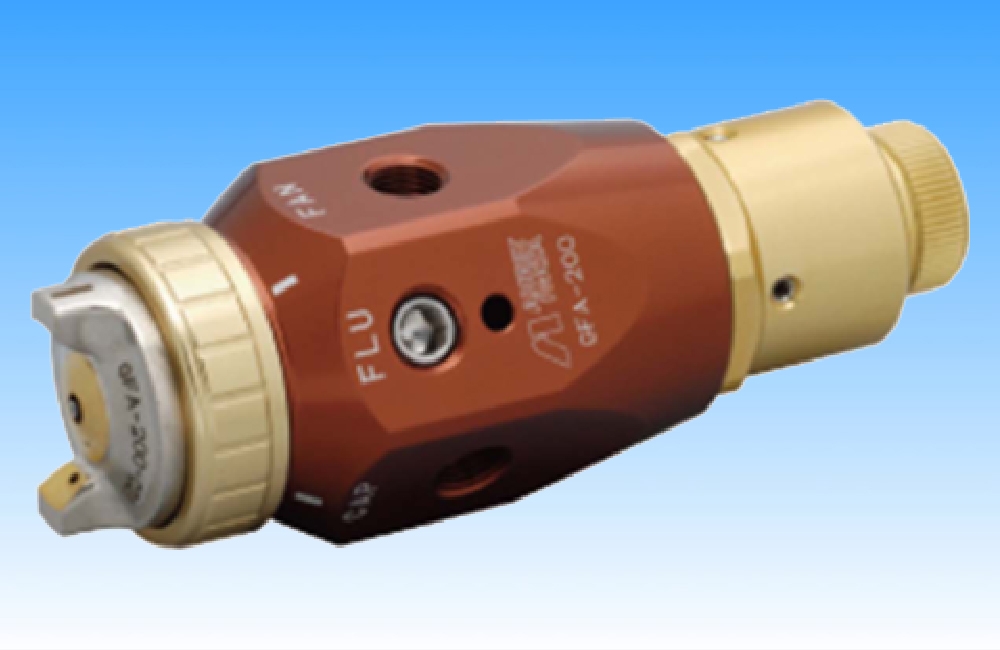

• GFA200S10C22-08: Anodized aluminum body; optimized for robotic systems with multiple spray guns (e.g., dual-spindle configurations)

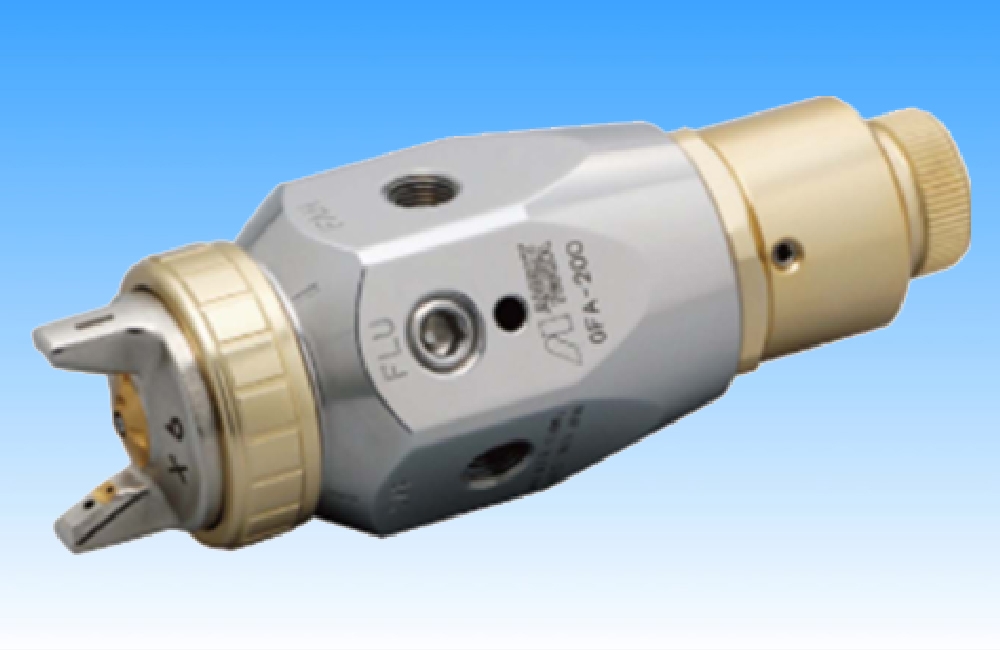

• GFA200S2BX6-10: Stainless steel body; recommended for precision coating of laptop housings, automotive resin parts with masking jigs, and metal mesh components
