Large Spray Gun

Product Name : Large Spray Gun
Model : F210

Q'ty :
    Enlargement



    Products

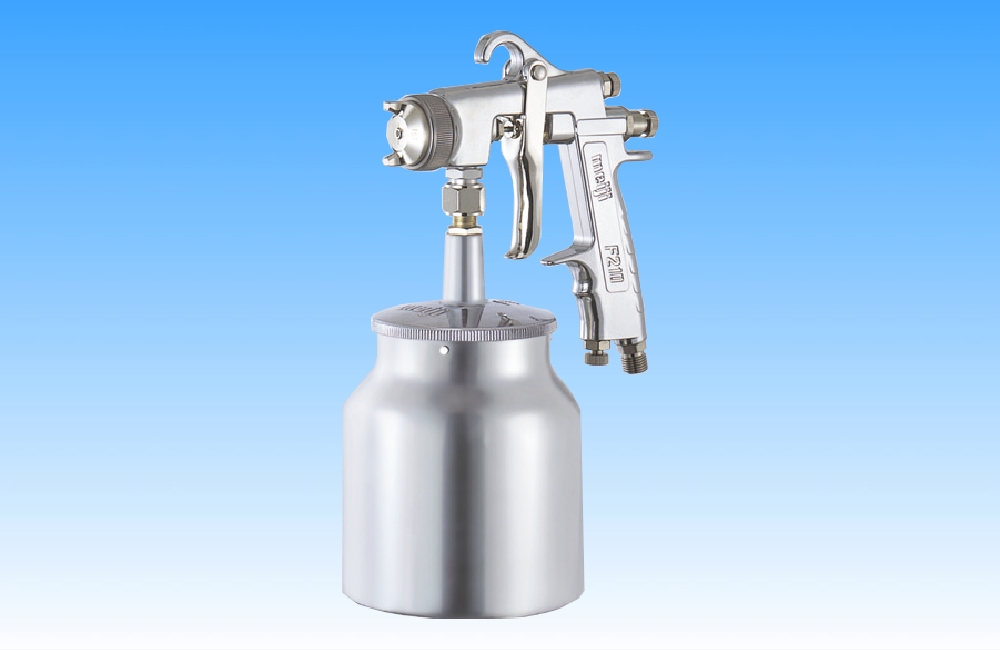

    Large Spray Gun
    F210

    Product Features:

    • New Atomization Method: Provides high-efficiency spray quality.
    • High-Durability Materials: Ensures enhanced longevity and durability.
    Technical Data

    Model
    Paint Supply Type
    Nozzle Diameter
    mm
    Air Cap Model號
    Air Pressure
    MPa
    Spray Distance
    mm
    Air Consumption
    L/min
    Paint Flow Rate
    mL/min
    Spray Width
    mm
    Required Compressor
    kW
    F210-P12P
    Pressure Feed
    1.2
    12P
    0.25
    250
    335
    530
    350
    2.2 or above
    F210-P15P
    1.5
    15P
    345
    880
    370
    F210-S15T
    Suction Feed
    1.5
    15T
    0.25
    250
    170
    205
    220
    1.5 or above
    F210-S20T
    2.0
    20T
    220
    285
    280
    2.2 or above
    F210-S25T
    2.5
    25T
    275
    350
    300
    F210-S30T
    3.0
    30T
    320
    360
    300
    3.7 or above
    • Paint Viscosity: 20 seconds using Meiji V-1 type viscosity cup
    • For Pressure Feed: Pressure is 0.08 MPa
    • T-Type Air Cap: Spray volume and width are based on automotive repair paints with 12 seconds using Meiji V-1 type viscosity cup
    • Air Inlet Size: G1/4
    • Paint Inlet Size: G3/8
    • Body Weight: 391 g
