Medium Spray Gun

Product Name : Medium Spray Gun
Model : F111

Q'ty :
Enlargement



Products

Handheld Air Spray Gun
F111

The F111 incorporates Meiji’s proprietary MMFT fine atomization technology, delivering a smooth and uniform spray pattern even at low air pressure and reduced air consumption. This allows users to maintain excellent coating quality while improving overall operating efficiency.

Its newly designed fluid nozzle and air cap help minimize paint overspray and dry spray, while reducing paint buildup on the air cap. This not only lowers material waste but also makes routine cleaning and maintenance easier, even during extended periods of operation.

The F111 features a streamlined, ergonomically designed grip for comfortable handling and reduced operator fatigue. It is also suitable for waterborne coatings and can be widely used in general industrial finishing, automotive refinishing, and architectural coating applications.
Technical Data
Spray Distance
200 mm
Air Inlet
G1/4
Fluid Inlet
G1/4
Weight
292 g
Ordering Information
Model No.
Feed Type
Nozzle
(mm)
Air Cap
Atomizing Pressure
(bar)
Air Consumption
(L/min)
Fluid Output
(mL/min)
Pattern Width
(mm)

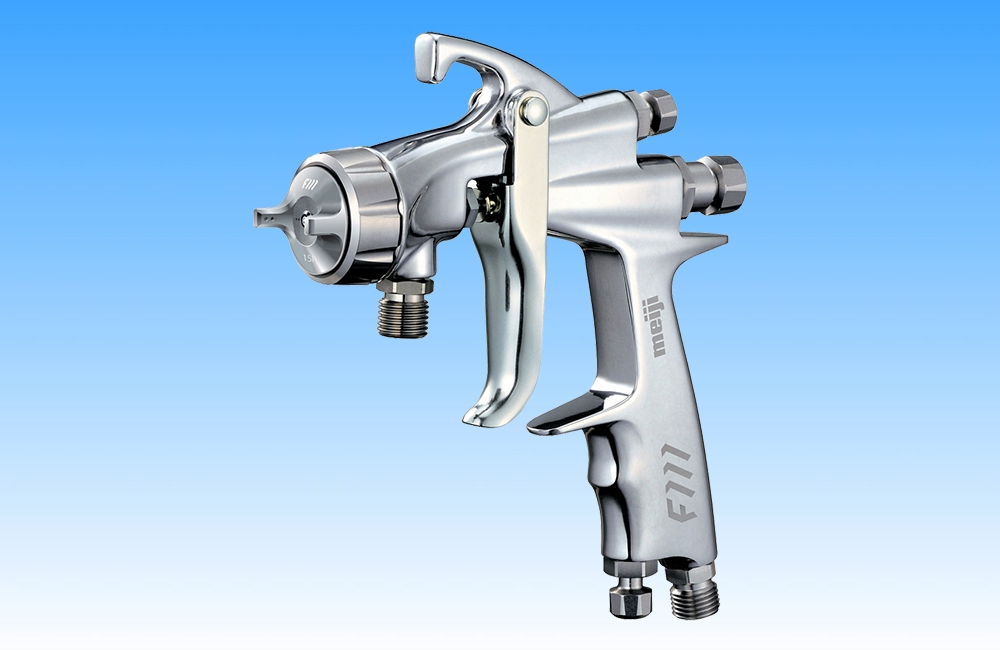

F111-P08P
Pressure
0.8
08P
2.5
215
175
235
F111-P10P
Pressure
1.0
10P
2.5
225
230
240
F111-P13P
Pressure
1.3
13P
2.5
260
305
270
F111-P15P
Pressure
1.5
15P
2.5
270
320
275

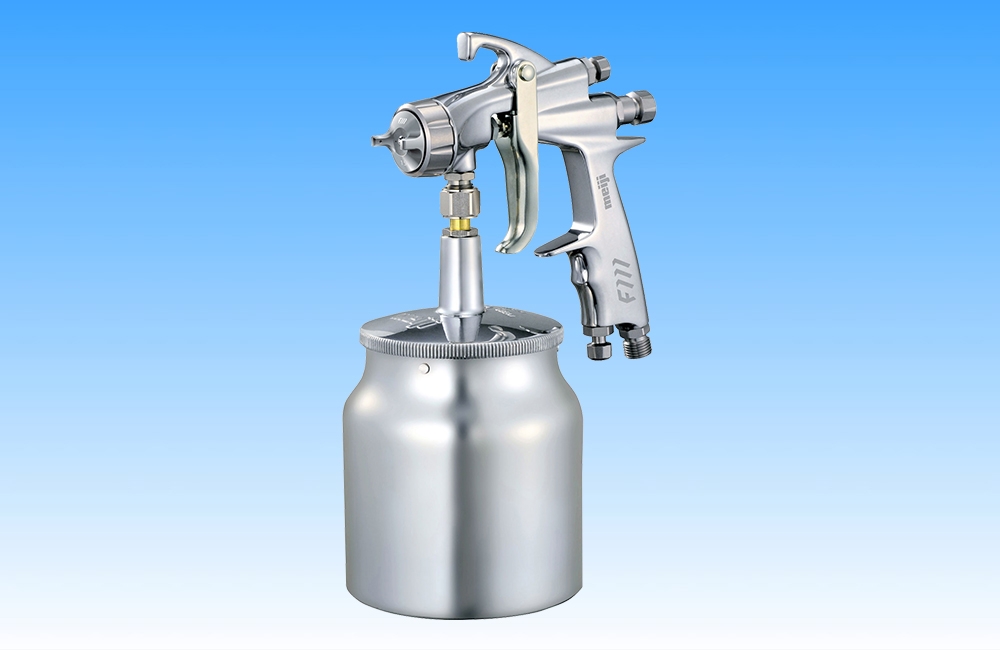

F111-S10T
Suction
1.0
10T
2.0
160
※70
※165
F111-S13T
Suction
1.3
13T
2.0
180
※120
※185
F111-S15T
Suction
1.5
15T
2.0
205
※135
※195
F111-S20T
Suction
2.0
20T
2.0
220
※180
※210
F111-S13ST
Suction
1.3
13ST
2.5
205
145
160
F111-S15ST
Suction
1.5
15ST
2.5
210
175
170
F111-S10
Suction
1.0
10
2.5
95
85
135
F111-S13
Suction
1.3
13
2.5
130
125
160
F111-S15
Suction
1.5
15
2.5
145
155
170
F111-S20
Suction
2.0
20
2.5
160
215
190

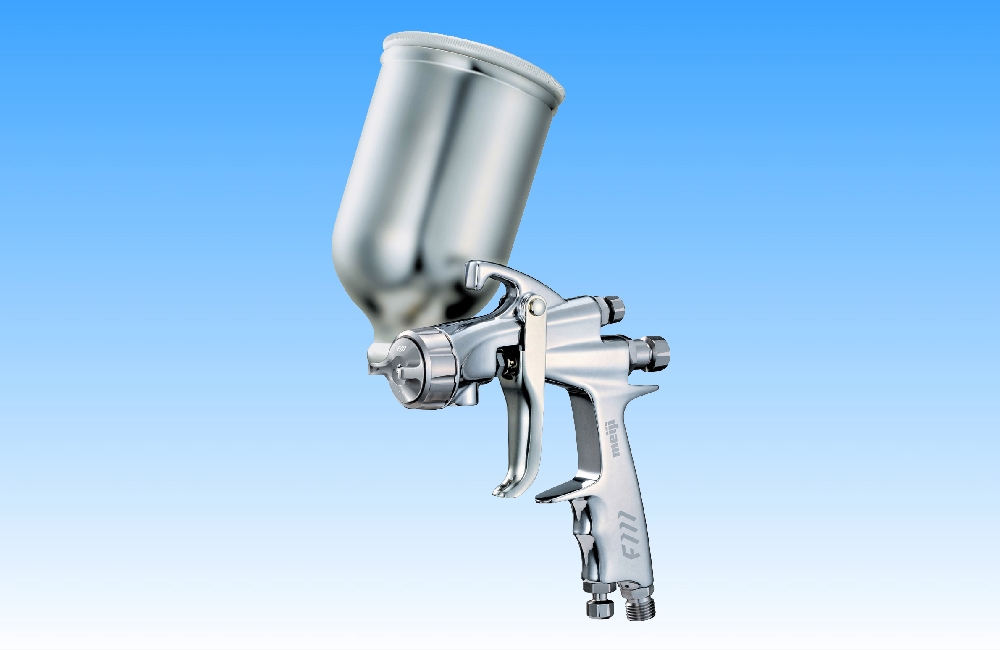

F111-G10T
Gravity
1.0
10T
2.0
160
※90
※185
F111-G13T
Gravity
1.3
13T
2.0
180
※145
※215
F111-G15T
Gravity
1.5
15T
2.0
205
※175
※225
F111-G20T
Gravity
2.0
20T
2.0
220
※235
※240
F111-G13ST
Gravity
1.3
13ST
2.5
205
170
180
F111-G15ST
Gravity
1.5
15ST
2.5
210
210
190
F111-G10
Gravity
1.0
10
2.5
95
100
145
F111-G13
Gravity
1.3
13
2.5
130
150
170
F111-G15
Gravity
1.5
15
2.5
145
190
185
F111-G20
Gravity
2.0
20
2.5
160
265
200
F111-G08R
Gravity
0.8
08R
2.5
65
55
35
F111-G25R
Gravity
2.5
25R
2.5
160
350
50

*Performance data marked with “※” are based on automotive refinishing coatings measured at 12 seconds using the Meiji V-1 Viscosity Cup. All other performance data are based on lacquer enamel coatings measured at 20 seconds using the Meiji V-1 Viscosity Cup.

The fluid pressure for pressure feed models is 0.8 bar. Actual performance may vary depending on coating type, viscosity, and operating conditions.*
