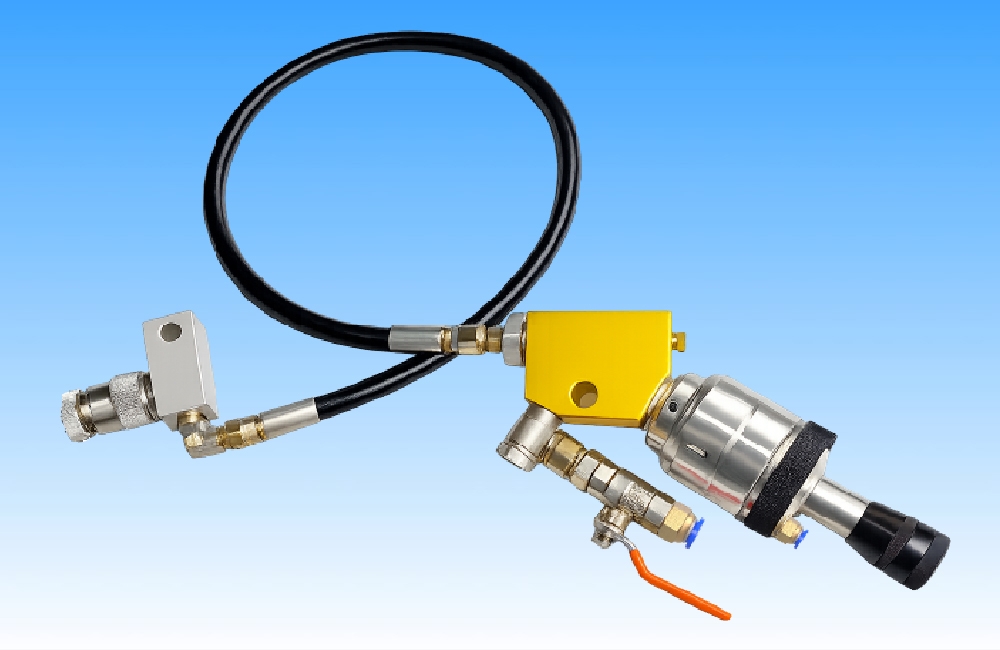

Polishing Wax spray gun
Product Name : Polishing Wax spray gun
Model : C-XH-006S
Enlargement
Products
| Model : C-XH-006S |
| Polishing Wax spray gun |
| Air pressure : 75~90PSI(5.5~7kg/cm2) |
Polishing slurry pressure : 50~90PSI(3~7kg2) |
| Air soft tube inner size : 3/8" |
Polishing slurry soft tube pressure : 1/2" |
| Solenoid valve : 3/8"npt |
Air consumption : 0.3c.f.m |
| Spray flow / one time : 0.5~3.7g |
|
| Operating type of Liquid Polishing slurry & Solid Polishing slurry |
| 1. Add 25% production : |
Operator don't break work and automatic control painting. Save 25% operator time. |
| 2. Save 35% clean time : |
Polishing slurry is water-based，After polishing, the clean process is saving 35% of time. |
3. Life of polishing wheel 10~20% ,avoid over hot to fire
|
To spray liquid polishing slurry on polishing wheel edge is cooling.It can add life of polishing wheel.To avoid over hot to fire. |
| Compare with other low pressure spray equipment |
| 1. With high pressure spray penetrate in polishing wheel，save 25% polishing fluid : |
To high pressure system is polishing polishing fluid on polishing wheel. It can save 25% fluid. |
| 2. Cost of pressure equipment and slide is low : |
There is high pressure in the gun without pressure tank or pump.That can save cost of equipment. Spray range is 24" width and can save installation fee. |
| 3. Save exchange time of polishing wheel : |
Life of polishing wheel is long so frequency of exchange time is less. |
| 4. Improve polishing environment : |
To spray polishing agent on polishing wheel is reduction dust and air pollution. |
Compare with other high pressure
|
| 1. Cost supply pressure system is low.There is high pressure in the gun without pressure tank or pump so just low pressure system. |
| 2. Can ensure polishing quality. There is high pressure in the gun so pressure is the same with every gun for quality of polishing.There is a special place for deposit polishing agent to control the spray capacity. |
