Economy / below discharge
-SS/AT-20E(FG)-SS-1000x650-藍色底圖.jpg)
Enlargement
Products
Product Image
-SS/AT-2H(FG)-SS-800x800-藍色底圖.jpg "proimages/products/AT-2H(FG)-SS/AT-2H(FG)-SS-800x800-藍色底圖.jpg")
-SS/AT-2E(FG)-SS-800x800-藍色底圖.jpg "proimages/products/AT-2E(FG)-SS/AT-2E(FG)-SS-800x800-藍色底圖.jpg")
Model
CT-05GS
AT-2H(FG)-SS
AT-2E(FG)-SS
Volume
0.5L
2L
2L
Fluid Outlet
1/4"psf×1
1/4"psf×1
1/4"psf×1
Max. Air Pressure
3.4 bar / 50 psi
3.4 bar / 50 psi
4.1 bar / 60 psi
Material
SUS304
SUS304
SUS304
Inner Tank
-
-
-
Tank Lid(T×I.D.×O.D.)
3.5×174×182mm
Tank body(T×H×I.D.×O.D.)
2×248×161×172mm
Specification(L×W×H)
154×130×425mm
180×180×488mm
Net/Gross/CUFT
2.2kg/2.4kg
5.2kg/5.7kg/0.7'
Product Image
/AT-5E(FG)-800x800-藍色底圖.jpg "proimages/products/AT-5E(FG)/AT-5E(FG)-800x800-藍色底圖.jpg")
-SS/AT-10E(FG)-SS-800x800-藍色底圖.jpg "proimages/products/AT-10E(FG)-SS/AT-10E(FG)-SS-800x800-藍色底圖.jpg")
-SS/AT-20E(FG)-SS-800x800-藍色底圖.jpg "proimages/products/AT-20E(FG)-SS/AT-20E(FG)-SS-800x800-藍色底圖.jpg")
Model
AT-5E(FG)-SS
AT-10E(FG)-SS
AT-20E(FG)-SS
Volume
4L
10L
20L
Fluid Outlet
1/4"psf×1
3/4"psm×1
3/4"psm×1
Max. Air Pressure
4.1 bar / 60 psi
4.1 bar / 60 psi
4.1 bar / 60 psi
Material
SUS304
SUS304
SUS304
Inner Tank
-
-
-
Tank Lid(T×I.D.×O.D.)
3.5×174×182mm
3.5×279×287mm
5×334×344mm
Tank body(T×H×I.D.×O.D.)
2×295×161×172mm
2×358×265×276mm
2×532×317×327mm
Specification(L×W×H)
180×180×515mm
290×290×605mm
410×325×840mm
Net/Gross/CUFT
6kg/6.6kg/0.95'
13.5kg/14.7kg/2'
20.4kg/22.3kg/4.5'

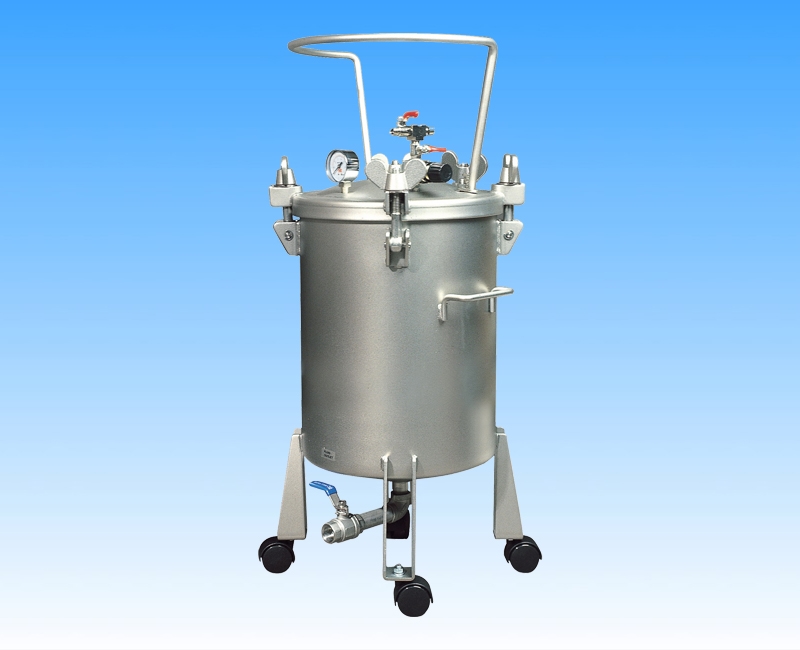

Product Image
-SS/AT-50E(FG)-SS-800x800-藍色底圖.jpg "proimages/products/AT-50E(FG)-SS/AT-50E(FG)-SS-800x800-藍色底圖.jpg")
Model
AT-50E(FG)-SS
Volume
50L
Fluid Outlet
3/4"psm×1
Max. Air Pressure
4.1 bar / 60 psi
Material
SUS304
Inner Tank
-
Tank Lid(T×I.D.×O.D.)
5×390×401mm
Tank body(T×H×I.D.×O.D.)
2×590×372×382mm
Specification(L×W×H)
475×470×945mm
Net/Gross/CUFT
24.2kg/27.3kg/7.8'
