High-Pressure 2K Injection Gun

High-Pressure Two-Component Injection Gun
2P-LG-01

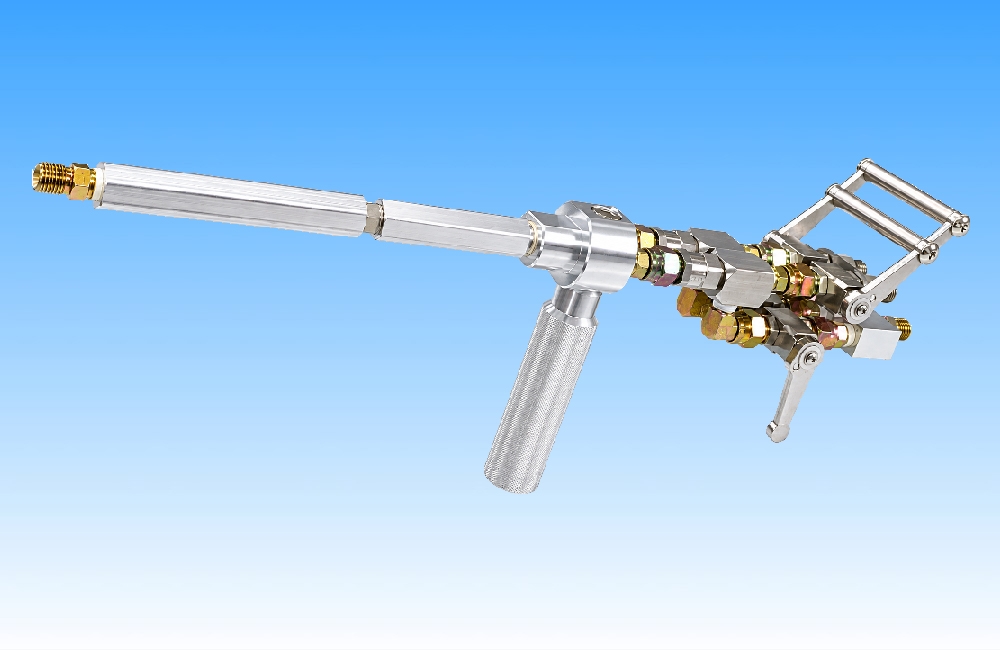

The 2P-LG-01 High-Pressure Two-Component Injection Gun features separate inlets for the base material and hardener. It can be used with a two-component proportioning system, which supplies the two materials separately to the gun for mixing and injection at the front end.

The gun is equipped with dual check valves, a mixing head, and a static mixer. The base material and hardener remain separated before entering the mixing section, where they are thoroughly mixed before being discharged through the outlet.

The manual on/off control provides simple operation and easy maintenance. An extension nozzle or grease fitting with high-pressure hose is also available as an option to accommodate different injection locations and applications.

Features

• Separate Two-Component Inlets
  Separate inlets for the base material and hardener allow the two components to remain isolated until they reach the mixing section.
• High-Pressure Injection Capability
  Rated for pressures up to 3,000 psi and suitable for use with high-pressure two-component proportioning systems.
• Dual Check Valves
  Each material line is equipped with a check valve to help prevent material backflow.
• Static Mixing System
  The mixing head, mixing tube, and static mixing elements provide effective mixing of the two components before discharge.
• Manual On/Off Control
  The mechanical control mechanism allows direct opening and closing of the material flow for on-site injection applications.
• Multiple Outlet Options
  An extension nozzle (3PLG-11) or grease fitting with high-pressure hose (3PLG-12) can be selected to accommodate different injection locations and application requirements.
