High-Pressure 2K Pump

High-Pressure Two-Component Pump
2P-146-30-11

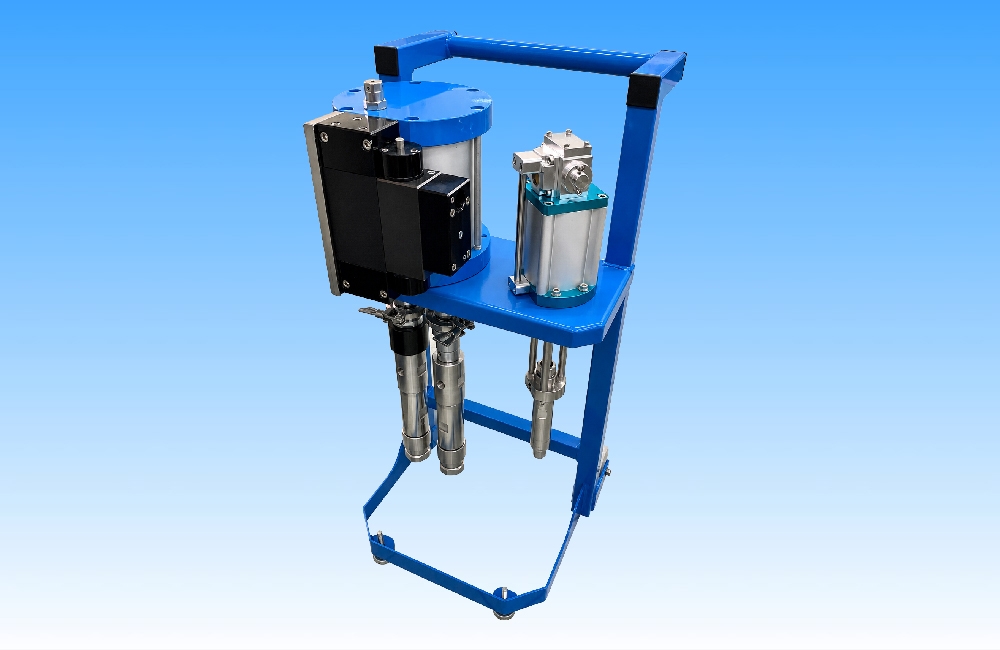

The 2P-146-30-11-A is a high-pressure pump specifically designed for two-component materials. Its dual-pump configuration separately delivers the base material and hardener while maintaining a stable 1:1 mixing ratio. The air-powered high-pressure system provides stable material delivery to the application point, making it suitable for continuous material supply and professional high-pressure injection applications.

When used with the 2P-LG-01 High-Pressure Injection Gun, the base material and hardener are delivered separately through independent lines into the gun. The two components are then combined through the mixing head and static mixing tube before discharge. This point-of-use mixing design minimizes the amount of mixed material remaining in the upstream hoses and makes operation and cleaning more convenient.

The complete system integrates two-component material supply, high-pressure delivery, mixing, and injection. Optional accessories, including an extension nozzle or grease fitting with high-pressure hose, are available for different injection locations and working conditions. The system is suitable for two-component resins and other materials requiring a fixed mixing ratio, and can be used for crack repair, waterproofing and leak sealing, structural repair, and other high-pressure injection applications.

Equipment Features

• Synchronized Two-Component Supply: The base material and hardener are delivered separately by independent pumps, maintaining a stable 1:1 supply ratio.
• High-Pressure Delivery: The 30:1 pressure ratio provides the pressure required for high-pressure material delivery and injection applications.
• Point-of-Use Mixing: When paired with the 2P-LG-01 High-Pressure Injection Gun, the base material and hardener remain separated until they enter the gun, where they are combined through the mixing head and static mixing tube. This minimizes mixed material remaining in the upstream hoses.
• Integrated On/Off Control: The injection gun provides synchronized control of both material lines for convenient start/stop operation.
• High-Pressure Injection Gun: The 2P-LG-01 is rated for a maximum working pressure of 3,000 psi and is designed for use with high-pressure two-component pumping systems.
• Optional Application Accessories: An extension nozzle or grease fitting with high-pressure hose can be selected to accommodate different injection locations and application requirements.
• Air-Powered Operation: Powered by compressed air, the system is suitable for job-site applications and continuous material supply.
• Easy Maintenance: The pump and injection gun feature modular component designs, with packing, valve-seat, and air-valve repair kits available for routine maintenance and replacement of wear parts.
